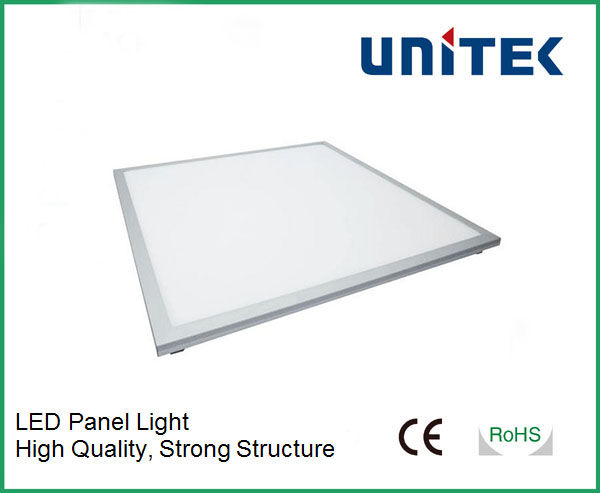

LED Panel Light
Description:
- - - - Widespread and widely-used LED panel light

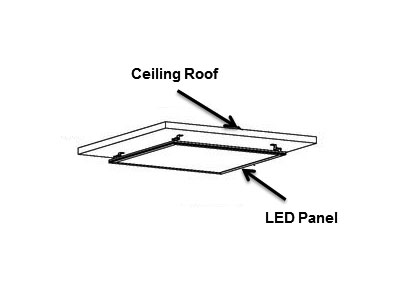

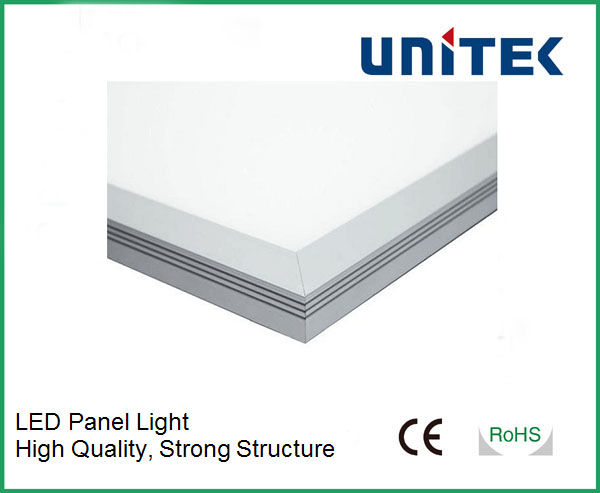

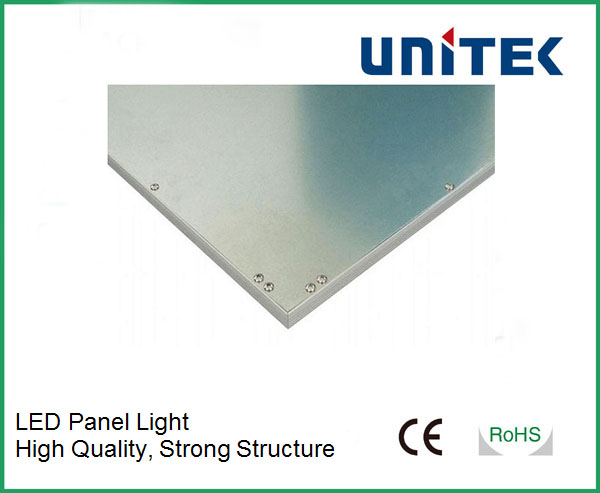

        The product uses high brightness LED light tube as a light source, low-voltage constant current driver, safety, reliable, low power consumption, long life. Frame with anodized pure aluminum, the appearance of simple fashion, never change color. High translucent acrylic panels panel, light uniformity, soft, high light efficiency. Instant lighting, no flicker, no glare, lead, mercury and other harmful substances. Luminaire easy installation, can directly replace ceiling recess mount

PRODUCTS

LED Outdoor

LED Indoor

LED Professional

HID Lamps

Data Sheets, Specifications and Downloads
Features and Benefits

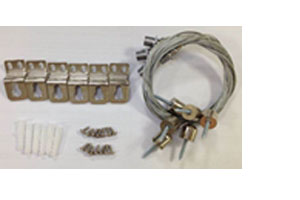

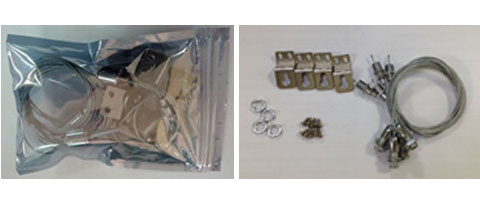

Options and Accessories

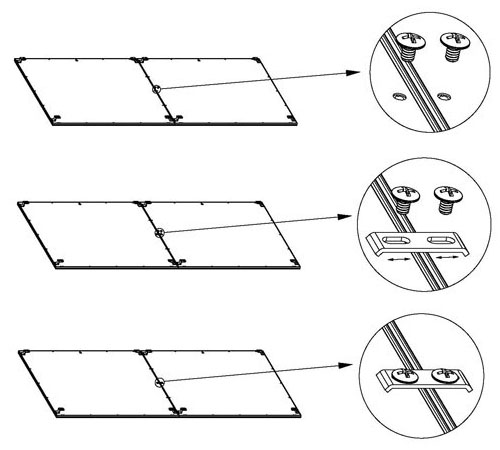

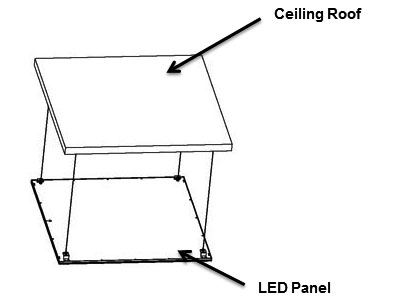

Instruction

Advantages
● LED panel light is a kind of top grade indoor lighting. Make you enjoy your life in comfortable LED lighting.
● Our LED Panel lights provide better than 60% energy saving,with over 3 years life span.
● No infrared rays,no ultraviolet radiation,no thermal effect.
● These recessed luminaires fit attractively into any kind of ceiling and can be applied to commercial,retail and various other applications. Regardless of your need for exceptional uniform or more focused light, they all appear free of a visible light.

Model UN-B/C/DS66

Input Voltage(V) AC 110/ 220V

Power Supply External

Watts(W) 40 50 32

Lumen
(lm_DL) 3350 4300 2700

CRI 80

Color Temp. 3000K_WW/ 4000K_NW/ 6000K_DL

Dimmable Optional

LED Q'ty 192 260 156

LED Type SMD4014

IP Grade 20

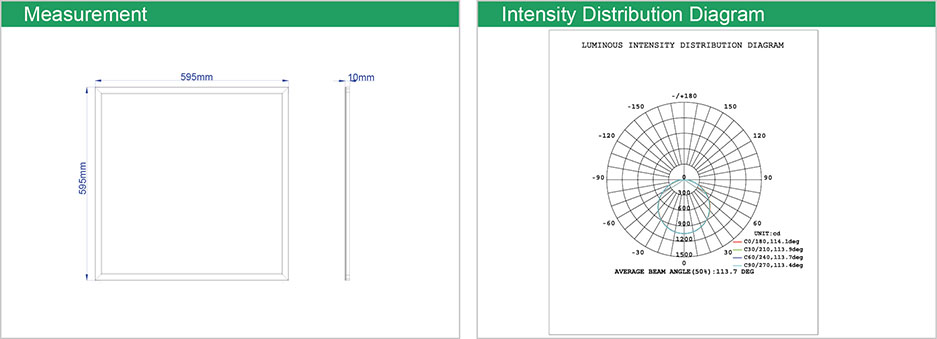

Product Size(cm) 59.5*59.5*0.1

Working Temp. -20-40℃

Lifespan 40,000hrs

Wattanty 3 years

Certificate CE

Model UN-AS312 UN-AS33 UN-AS36 UN-BS612

Input Voltage(V) AC 110/ 220V AC 176-265V

Power Supply External

Watts(W) 40 13 20 58

Lumen
(lm_DL) 3150 1000 1500 5000

CRI 80

Color Temp. 3000K_WW/ 4000K_NW/ 6000K_DL

Dimmable Optional

LED Q'ty 192 60 96 336

LED Type SMD4014

IP Grade 20

Product Size(cm) 29.5*119.5*0.1 29.5*29.5*0.1 29.5*59.5*0.1 59.5*119.5*0.1

Working Temp. -20-40℃

Lifespan 40,000hrs

Wattanty 3 years

Certificate CE

Model UN-B/C/D/ES620

Input Voltage(V) AC 220-240V

Power Supply External

Watts(W) 40 50 32 58

Lumen
(lm_DL) 3350 4300 2700 4850

CRI 80

Color Temp. 3000K_WW/ 4000K_NW/ 6000K_DL

Dimmable Optional

LED Q'ty 192 260 156 336

LED Type SMD4014

IP Grade 20

Product Size(cm) 62*62*0.1

Working Temp. -20-40℃

Lifespan 40,000hrs

Wattanty 3 years

Certificate CE

Model	UN-B/C/DS66
Input Voltage(V)	AC 110/ 220V
Power Supply	External
Watts(W)	40	50	32
Lumen (lm_DL)	3350	4300	2700
CRI	80
Color Temp.	3000K_WW/ 4000K_NW/ 6000K_DL
Dimmable	Optional
LED Q'ty	192	260	156
LED Type	SMD4014
IP Grade	20
Product Size(cm)	59.559.50.1
Working Temp.	-20-40℃
Lifespan	40,000hrs
Wattanty	3 years
Certificate	CE

Model	UN-AS312	UN-AS33	UN-AS36	UN-BS612
Input Voltage(V)	AC 110/ 220V			AC 176-265V
Power Supply	External
Watts(W)	40	13	20	58
Lumen (lm_DL)	3150	1000	1500	5000
CRI	80
Color Temp.	3000K_WW/ 4000K_NW/ 6000K_DL
Dimmable	Optional
LED Q'ty	192	60	96	336
LED Type	SMD4014
IP Grade	20
Product Size(cm)	29.5119.50.1	29.529.50.1	29.559.50.1	59.5119.50.1
Working Temp.	-20-40℃
Lifespan	40,000hrs
Wattanty	3 years
Certificate	CE

Model	UN-B/C/D/ES620
Input Voltage(V)	AC 220-240V
Power Supply	External
Watts(W)	40	50	32	58
Lumen (lm_DL)	3350	4300	2700	4850
CRI	80
Color Temp.	3000K_WW/ 4000K_NW/ 6000K_DL
Dimmable	Optional
LED Q'ty	192	260	156	336
LED Type	SMD4014
IP Grade	20
Product Size(cm)	62620.1
Working Temp.	-20-40℃
Lifespan	40,000hrs
Wattanty	3 years
Certificate	CE
