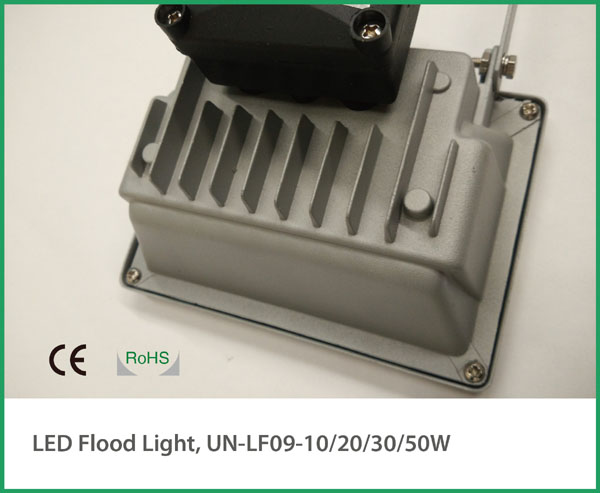

LED Flood Light

LED Flood Light
Description:
- - - - PF>0.9, Constant Current, Normal type/ Sensor type/ Portable type can be optional, LED Flood Light.

        10W-50W ia available, Wide Voltage 185-265V, High CRI70, High Lamp Efficiency >90lm/w.

        Warranty 3years, Certificate CE/ RoHS

PRODUCTS

LED Outdoor

LED Indoor

LED Professional

HID Lamps

Advantages

● Better environmental adaptability.

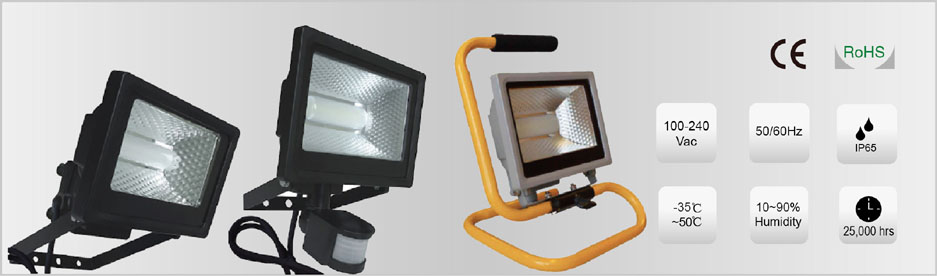

● Three types can be optional: Normal type, Sensor type and Portable type.

● Warranty 3 years.
● Long Lifetime.

Applications

Model UN-LF09-10W UN-LF09-20W UN-LF09-30W UN-LF09-50W

Type Normal/ Sensor/ Portable

Power Supply AC 185V～265V

Frequency Constant Current

CRI ≥70

PF >0.85 >'0.9

Watts(W) 10 20 30 50

Light Output(lm) 665/ 700/ 735 1330/ 1400/ 1470 1935/ 2100/ 2270 3220/ 3500/ 3780

Light Efficiency 60lm/w_WW
70lm/w_NW DL

Color Temp. 2700K_WW/ 4000K_NW/ 6000K_DL

Packing Color Box

Carton Size(cm) Normal type: 40*31*39/24pcs
Sensor type:39.5*31*42/12pcs
Portable type:40*32*45/12 Normal type::40*36.5*38/12pcs
Sensor type: 52*20*48/8pcs
Portable type: 48*47*30/8pcs Normal type::40*36.5*38/12pcs
Sensor type: 52*20*48/8pcs
Portable type: 48*47*30/8pcs Normal type: 51*41*31.5/6pcs
Sensor type:51*41*31.5/6pcs

Qty./Ctn. 24pcs 8pcs 6pcs

Gross Weight(KGs)/Ctn Normal type: 12.7
Sensor type:9.0
Portable type:14.6 Normal type:11.9
Sensor type: 9.5
Portable type: 13.2 Normal type:12.2
Sensor type:9.8
Portable type:13.5 Normal type: 10.3
Sensor type:10.7
Portable type:

Warranty 3 years

Certificate CE/ RoHS

Model	UN-LF09-10W	UN-LF09-20W	UN-LF09-30W	UN-LF09-50W
Type	Normal/ Sensor/ Portable
Power Supply	AC 185V～265V
Frequency	Constant Current
CRI	≥70
PF	>0.85	>'0.9
Watts(W)	10	20	30	50
Light Output(lm)	665/ 700/ 735	1330/ 1400/ 1470	1935/ 2100/ 2270	3220/ 3500/ 3780
Light Efficiency	60lm/w_WW 70lm/w_NW DL
Color Temp.	2700K_WW/ 4000K_NW/ 6000K_DL
Packing	Color Box
Carton Size(cm)	Normal type: 403139/24pcs Sensor type:39.53142/12pcs Portable type:403245/12	Normal type::4036.538/12pcs Sensor type: 522048/8pcs Portable type: 484730/8pcs	Normal type::4036.538/12pcs Sensor type: 522048/8pcs Portable type: 484730/8pcs	Normal type: 514131.5/6pcs Sensor type:514131.5/6pcs
Qty./Ctn.	24pcs	8pcs		6pcs
Gross Weight(KGs)/Ctn	Normal type: 12.7 Sensor type:9.0 Portable type:14.6	Normal type:11.9 Sensor type: 9.5 Portable type: 13.2	Normal type:12.2 Sensor type:9.8 Portable type:13.5	Normal type: 10.3 Sensor type:10.7 Portable type:
Warranty	3 years
Certificate	CE/ RoHS
